Ultimatex® PP Woven Geotextile
Ultimatex® PP series of woven Polypropylene geotextiles are manufactured from individually woven, Ultraviolet(UV)-resistant polypropylene yarn with high tensile strength.
Ultimatex® PP series supply stable dimension and resistance against chemical environment.

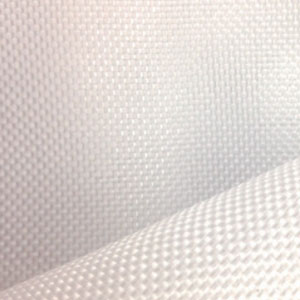

PP MAT
Multi Filament Type
Ultimatex® PP series has a good function of
Application
- Road and Rail Construction.
- Soft subgrade stabilization
- Marine application
Ultimatex® PP Woven Geotextile's guide
좌, 우 드래그가능
| 인장강도 | 인장변형률 | 봉합강도 | 투수계수 | |
|---|---|---|---|---|
| Test Method | KSK ISO 10319 | KSK ISO 10319 | KSK ISO 10321 | KSK ISO 11058 |
| Unit Criteria | ≥ kN/m | % | ≥ kN/m | ≥ m/sec |
| DJP3 | 30 | 10~30 | 15 | 1 X 10-3 |
| DJP5 | 50 | 25 | ||
| DJP10 | 100 | 50 |
- The indicated test figure is obtained in our laboratory and independent institutes.
- The figure may change without notice according to new development products.
- Other Strengths on request, please consult us.
