Ultimatex® PET Woven Geotextile (DJL MAT)
Ultimatex® DJL Series of woven polyester geotextiles are manufactured from high tensile strength polyester yarns with low elongation to meet special request from Road and Rail construction field.
Transverse (Weft) Direction is manufactured on 50kN/M and it can be produced 2,000kN in waft direction.

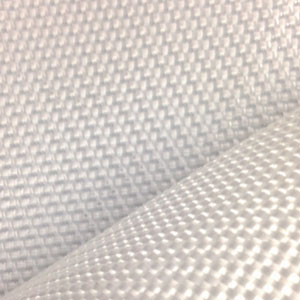

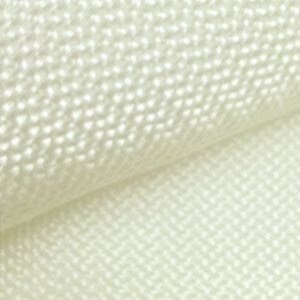

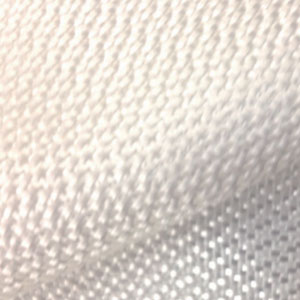

DJL Series
200KN/50KN/M
300KN/50KN/M
400KN/50KN/M
Application
- Road and Rail Construction.

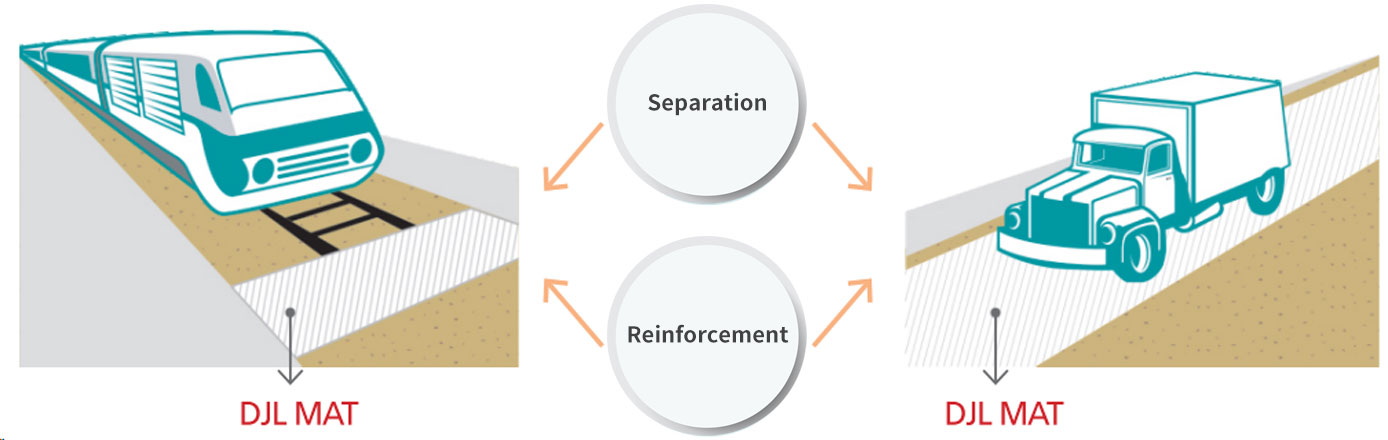

Ultimatex® DJL series developed for railway and road reinforcement
- The advantages for Ultimatex® DJL Series →DJL MAT help to build road and railways on weak soil.
- DJL MAT increase lifetime of the road and railways.
Ultimatex® DJL Series
Left and right draggable
| Tensile strength | Elongation | Seam strength | Permeability | |||
|---|---|---|---|---|---|---|
| Warp | Weft | Warp | Weft | |||
| Test Method | KSK ISO 10319 | KSK ISO 10319 | KSK ISO 10321 | KSK ISO 11058 | ||
| Unit Criteria | ≥ kN/m | % | ≥ kN/m | ≥ m/sec | ||
| DJL10 | 100 | 50 | 10~30 | 25 | 1 X 10-2~4 | |
| DJL15 | 150 | 25 | ||||
| DJL20 | 200 | 25 | ||||
| DJL30 | 300 | 25 | ||||
| DJL40 | 400 | 25 | ||||
| DJL50 | 500 | 25 | ||||
| DJL60 | 600 | 25 | ||||
| DJL80 | 800 | 25 | ||||
| DJL100 | 1000 | 25 | ||||
- The indicated test figure is obtained in our laboratory and independent institutes.
- The figure may change without notice according to new development products.
- Other Strengths on request, please consult us.
- Other dimensions on request, please consult us.
