Ultimatex® PET Woven Geotextile (DJ MAT)
Ultimatex® DJ series of woven polyester geotextiles are manufactured from high tensile strength polyester yarns with low elongation to meet most of demanding from construction field.

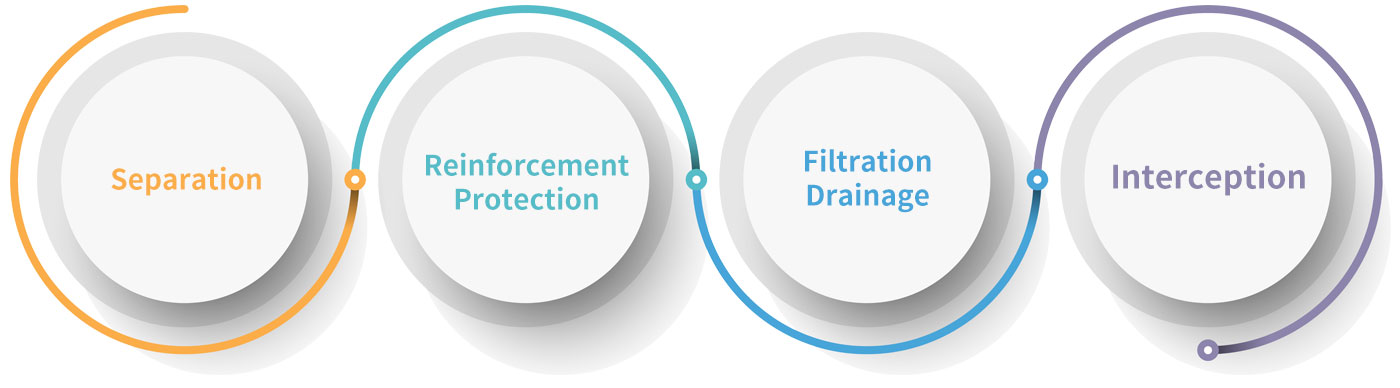

DJ series have a good function of
DJ MAT
100KN/100KN/M
200KN/200KN/M
300KN/300KN/M
Application
- Fast reinforcement of weak foundation
- Preventing differential settlement
- Supporting hardening process of week foundation
- Ensures operations of heavy equipments on reinforced foundation
- Road and Rail Construction.

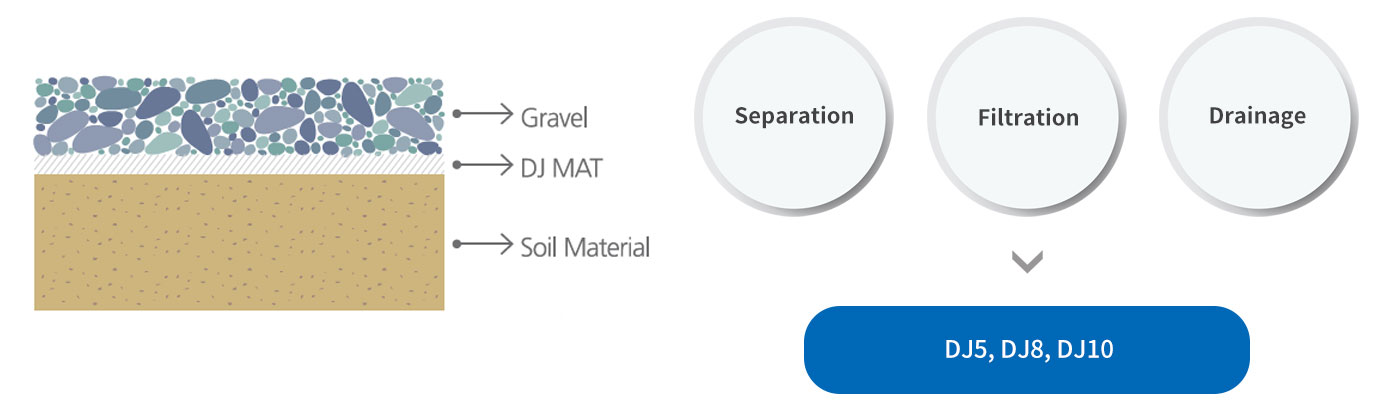

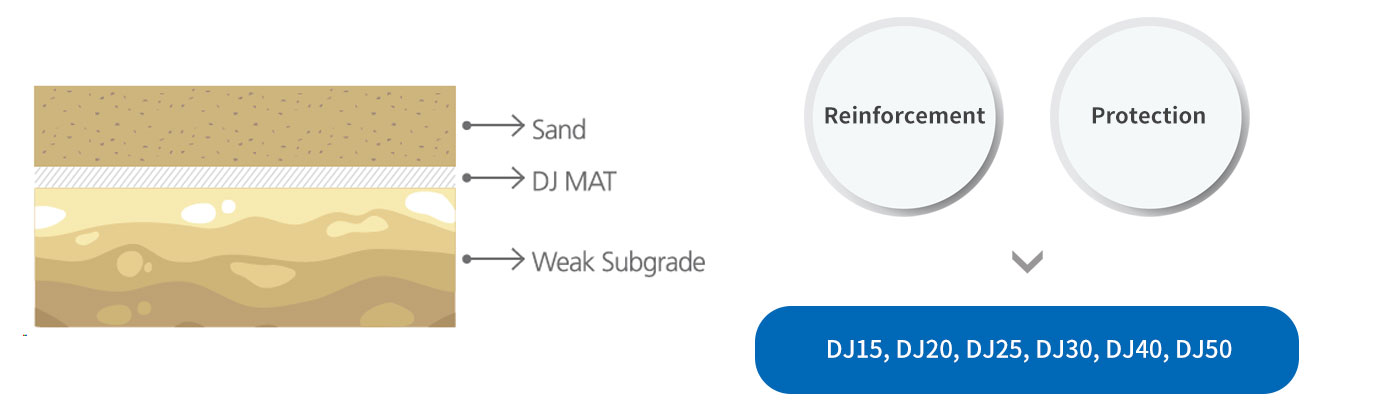

Our Recommended Ultimatex® DJ Series for usage
Ultimatex® DJ Series
Left and right draggable
| Tensile strength | Elongation | Seam strength | Permeability | |
|---|---|---|---|---|
| Test Method | KSK ISO 10319 | KSK ISO 10319 | KSK ISO 10321 | KSK ISO 11058 |
| Unit Criteria | ≥ kN/m | % | ≥ kN/m | ≥ m/sec |
| DJ5 | 50 | 10~30 | 25 | 1 X 10-2~4 |
| DJ8 | 80 | 40 | ||
| DJ10 | 100 | 50 | ||
| DJ15 | 150 | 75 | ||
| DJ20 | 200 | 100 | ||
| DJ25 | 250 | 125 | ||
| DJ30 | 300 | 150 | ||
| DJ40 | 400 | 200 | ||
| DJ50 | 500 | 250 |
- The indicated test figure is obtained in our laboratory and independent institutes.
- The figure may change without notice according to new development products.
- Other Strengths on request, please consult us.
- Other dimensions on request, please consult us.
